TGF2025 250 um Discrete GaAs pHEMT

TGF2025 Description

Applications * Defense & Aerospace * High-Reliability * Test and Measurement * Commercial * Broadband Wireless.
The TriQuint TGF2025 is a discrete 250 micron pHEMT which operates from DC to 20 GHz.

TGF2025 Features

* Frequency Range: DC - 20 GHz
* 24 dBm Typical Output Power - P1dB
* 14 dB Typical Gain at 12 GHz
* 58% Typical PAE at 12 GHz
* 0.9 dB Typical NF at12 GHz
* No Vias
* Technology: 0.25 um GaAs pHEMT
* Chip Dimensions: 0.41 x 0.34 x 0.10

TGF2025 Applications

* Defense & Aerospace
* High-Reliability
* Test and Measurement
* Commercial

📥 Download Datasheet

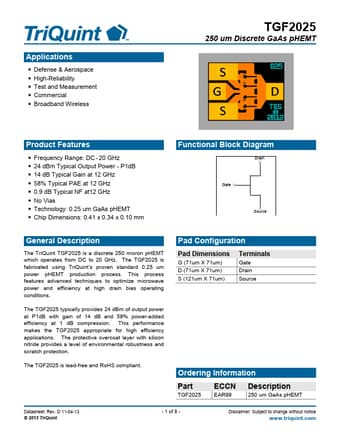

Preview of TGF2025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TGF2025
Manufacturer
TriQuint Semiconductor
File Size
397.86 KB
Datasheet
TGF2025-TriQuintSemiconductor.pdf
Description
250 um Discrete GaAs pHEMT
