TGF2120 - 1200um Discrete GaAs pHEMT

Product Overview

TriQuint Semiconductor

📥 Download Datasheet

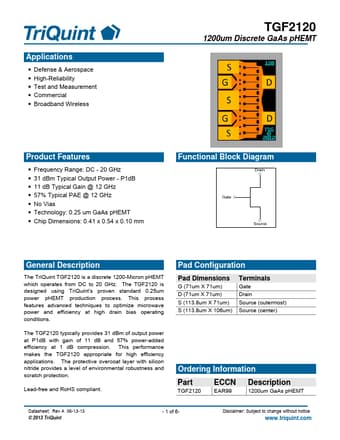

TGF2120 1200um Discrete GaAs pHEMT by TriQuint Semiconductor - Datasheet Preview — Datasheet preview – TGF2120

Datasheet Details

Part number	TGF2120
Manufacturer	TriQuint Semiconductor
File Size	216.79 KB
Description	1200um Discrete GaAs pHEMT
Datasheet	TGF2120 Datasheet
Additional preview pages of the TGF2120 datasheet.

Product details

Description

The TriQuint TGF2120 is a discrete 1200-Micron pHEMT which operates from DC to 20 GHz.

Features

Frequency Range: DC - 20 GHz.
31 dBm Typical Output Power - P1dB.
11 dB Typical Gain @ 12 GHz.
57% Typical PAE @ 12 GHz.
No Vias.
Technology: 0.25 um GaAs pHEMT.
Chip Dimensions: 0.41 x 0.54 x 0.10 mm Functional Block Diagram General.
