TSF50N06M Datasheet, Mosfet, Truesemi

TSF50N06M Features

  • Mosfet
  • 50A, 60V, RDS(on) = 0.023Ω @VGS = 10 V
  • Low gate charge ( typical 33nC)
  • Fast switching
  • 100% avalanche tested
  • Improved dv/dt capability

PDF File Details

Part number:

TSF50N06M

Manufacturer:

Truesemi

File Size:

828.14kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially t

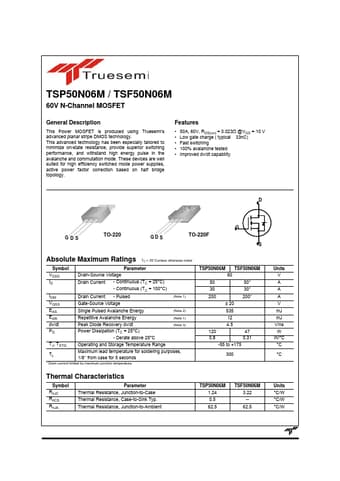

Datasheet Preview: TSF50N06M 📥 Download PDF (828.14kb)
Page 2 of TSF50N06M Page 3 of TSF50N06M
