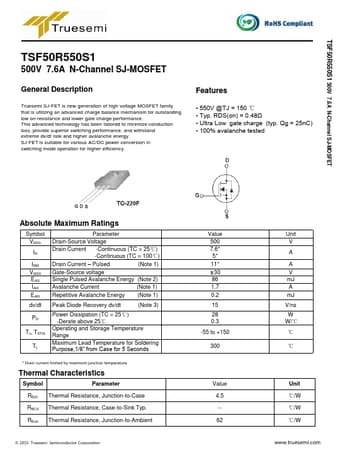

TSF50R550S1 Datasheet, Mosfet, Truesemi

TSF50R550S1 Features

• Mosfet
• 550V @TJ = 150 ℃
• Typ. RDS(on) = 0.48Ω
• Ultra Low gate charge (typ. Qg = 25nC)
• 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM

PDF File Details

Part number:

TSF50R550S1

Manufacturer:

Truesemi

File Size:

437.11kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstandin
