TSF5N60M - 600V N-Channel MOSFET

Truesemi

The TSF5N60M by Truesemi is a 600V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

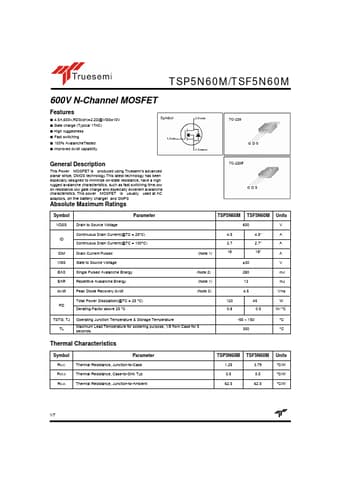

TSF5N60M 600V N-Channel MOSFET by Truesemi - Datasheet Preview — Official preview page of the **TSF5N60M** 600V N-Channel MOSFET datasheet (Truesemi).

Datasheet Details

Part number	TSF5N60M
Manufacturer	Truesemi
File Size	672.54 KB
Description	600V N-Channel MOSFET
Datasheet	TSF5N60M_Truesemi.pdf
Additional preview pages of the TSF5N60M datasheet.

TSF5N60M Product details

Description

This Power MOSFET is produced using Truesemi’s advanced planar stripe, DMOS technology.This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics, such as fast switching time,low on resistance.low gate charge and especially excellent avalanche characteristics.

Features

4.5A,600v,RDS(on)=2.2Ω@VGS=10V.
Gate charge (Typical 17nC).
High ruggedness.
Fast switching.
100% AvalancheTested.
Improved dv/dt capability General.
