TSF5N65M

N-Channel MOSFET

Truesemi

TSF5N65M Features

* 4.5A, 650V, RDS(on) = 3.0 @VGS = 10 V

* Low gate charge ( typical 16nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability D GDS TO-220 GD S TO-220F

* ◀▲ G

* S Absolute Maximum Ratings TC =

TSF5N65M General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSF5N65M Datasheet (691.30 KB)

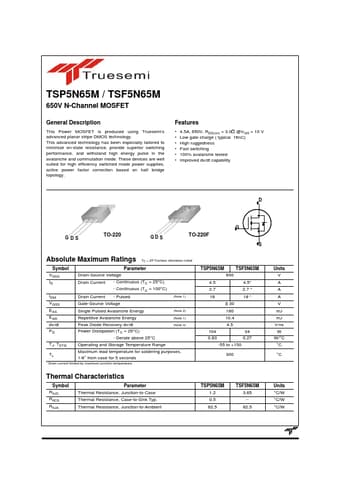

TSF5N65M Datasheet Preview — Preview of TSF5N65M PDF

Datasheet Details

Part number:

TSF5N65M

Manufacturer:

Truesemi

File Size:

691.30 KB

Description:

N-channel mosfet.
