TSF50R140S1 N-Channel MOSFET

Truesemi

TSF50R140S1 Description

TSF50R140S1 500V 24A N-Channel SJ-MOSFET TSF50R140S1 500V 24A N-Channel SJ-MOSFET General .
Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistan.

TSF50R140S1 Features

* 550V @TJ = 150 ℃
* Typ. RDS(on) = 0.12Ω
* Ultra Low gate charge (typ. Qg = 70nC)
* 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt Parameter Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 10

📥 Download Datasheet

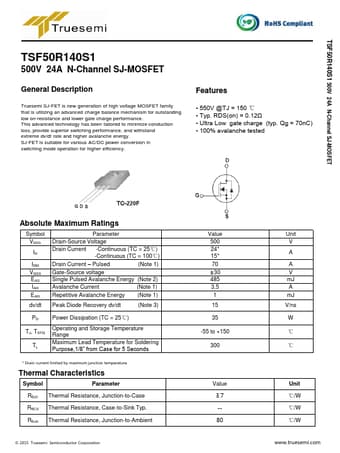

TSF50R140S1 Datasheet Preview — Preview of TSF50R140S1 PDF

Datasheet Details

Part number: TSF50R140S1
Manufacturer: Truesemi
File Size: 692.14 KB
Datasheet: TSF50R140S1-Truesemi.pdf
Description: N-Channel MOSFET
