TSF65R190S1, N-Channel MOSFET

TSF65R190S1 650V 20A N-Channel SJ-MOSFET TSF65R190S1 650V 20A N-Channel SJ-MOSFET General .
Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistan.

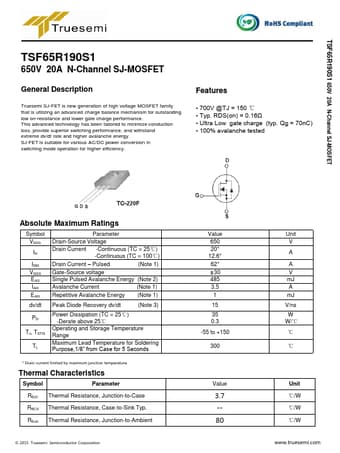

datasheet Preview Page 1 from Datasheet4u.com

TSF65R190S1-Truesemi.pdf

TSF65R190S1 Datasheet Preview — Preview of TSF65R190S1 PDF

Datasheet Details

Part number:

TSF65R190S1

Manufacturer:

Truesemi

File Size:

1.09 MB

Description:

N-Channel MOSFET

Features

* 700V @TJ = 150 ℃
* Typ. RDS(on) = 0.16Ω
* Ultra Low gate charge (typ. Qg = 70nC)
* 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Cont
