TSF65R300S1 Datasheet, Mosfet, Truesemi

TSF65R300S1 Features

  • Mosfet
  • 700V @TJ = 150 ℃
  • Typ. RDS(on) = 0.27Ω
  • Ultra Low gate charge (typ. Qg = 43nC)
  • 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM

PDF File Details

Part number:

TSF65R300S1

Manufacturer:

Truesemi

File Size:

631.80kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstandin

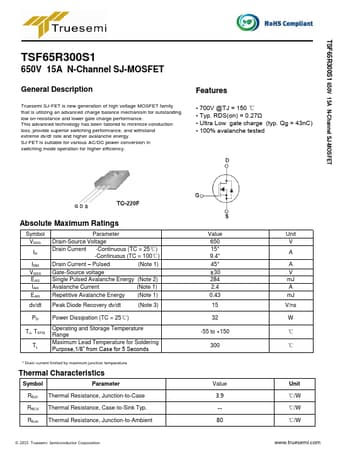

Datasheet Preview: TSF65R300S1 📥 Download PDF (631.80kb)
Page 2 of TSF65R300S1 Page 3 of TSF65R300S1
