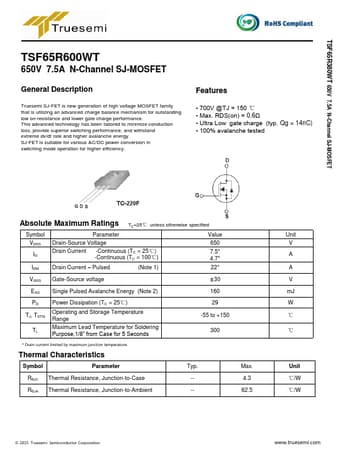

TSF65R600WT N-Channel MOSFET

Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, .

TSF65R600WT Features

* 700V @TJ = 150 ℃

* Max. RDS(on) = 0.6Ω

* Ultra Low gate charge (typ. Qg = 14nC)

* 100% avalanche tested Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continu
