TSF65R380WT

N-Channel MOSFET

TSF65R380WT Features

* 700V @TJ = 150 ℃

* Max. RDS(on) = 0.38Ω

* Ultra Low gate charge (typ. Qg = 17.5nC)

* 100% avalanche tested Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Cont

TSF65R380WT General Description

Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, .

TSF65R380WT Datasheet (432.04 KB)

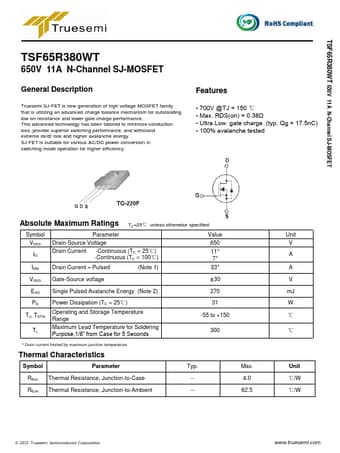

Preview of TSF65R380WT PDF

Datasheet Details

Part number:

TSF65R380WT

Manufacturer:

Truesemi

File Size:

432.04 KB

Description:

N-channel mosfet.
