2015 - Single P-Channel Power MOSFET

Datasheet Summary

Description

The 2015 is P-Channel enhancement MOS Field Effect Transistor.

Uses advanced trench technology and design to provide excellent RDS (ON) with low gate charge.

This device is suitable for use in DC-DC conversion, power switch and charging circuit.

Features

  • z Trench Technology z Supper high density cell design z Excellent ON resistance for higher DC current z Extremely Low Threshold Voltage z Small package SOT-23.

📥 Download Datasheet

Datasheet preview – 2015

Datasheet Details

Part number 2015
Manufacturer Tuofeng Semiconductor
File Size 208.79 KB
Description Single P-Channel Power MOSFET
Datasheet download datasheet 2015 Datasheet
Additional preview pages of the 2015 datasheet.

📁 Similar Datasheet

  • 2015M - MICROWAVEBIPOLAR (ETC)
  • 2010 - Double Sided Chip Resistor (TT electronics)
  • 2010DN - FYP2010DN (Fairchild Semiconductor)
  • 2011 - Fast Acting GDT Surge Arrestor (BOURNS)
  • 2012E - Tuning Fork SMD Quartz Crystal (YIC)
  • 2012ES - Tuning Fork SMD Quartz Crystal (YIC)
  • 2014VS - High Current Power Inductors (Coilcraft)
  • 2016L030 - Resettable PTC (Littelfuse)
  • 2016L050 - Resettable PTC (Littelfuse)
  • 2016L075 - Resettable PTC (Littelfuse)
Other Datasheets by Tuofeng Semiconductor
  • 2016 - N-Channel Enhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text

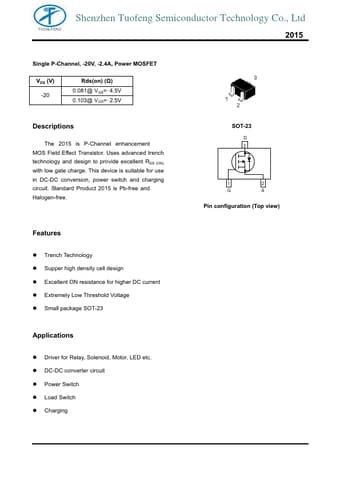

Shenzhen Tuofeng Semiconductor Technology Co., Ltd 2015 Single P-Channel, -20V, -2.4A, Power MOSFET VDS (V) -20 Rds(on) (ȍ) 0.081@ VGS=4.5V 0.103@ VGS=2.5V Descriptions The 2015 is P-Channel enhancement MOS Field Effect Transistor. Uses advanced trench technology and design to provide excellent RDS (ON) with low gate charge. This device is suitable for use in DC-DC conversion, power switch and charging circuit. Standard Product 2015 is Pb-free and Halogen-free. Features z Trench Technology z Supper high density cell design z Excellent ON resistance for higher DC current z Extremely Low Threshold Voltage z Small package SOT-23 Applications z Driver for Relay, Solenoid, Motor, LED etc.
