1307031

2.4 GHz Patch Antenna for ISM Band

1307031 Features

* Hemispherical/Omnidirectional Flat Configuration Rugged/Durable Low VSWR Circular Polarization Minimizes Multipath Effects Various Types of Input Connectors Available Variety of ISM Applications Description The ANP-C-116 patch an

1307031 General Description

The ANP-C-116 patch antenna is a hemispherical/ omnidirectional antenna. It is curcularly polarized to maximize immunity to fading in high multipath environments. This durable antenna has a flat configuration that makes it suitable for surface mount applications. It can be used for a variety of ISM .

1307031 Datasheet (75.48 KB)

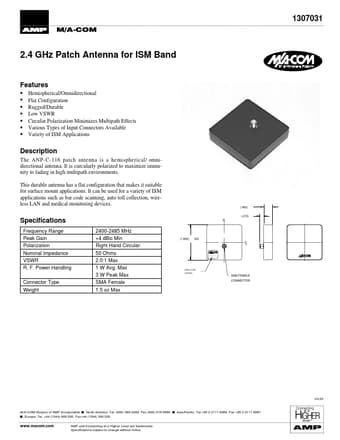

Preview of 1307031 PDF

Datasheet Details

Part number:

1307031

Manufacturer:

Tyco Electronics

File Size:

75.48 KB

Description:

2.4 ghz patch antenna for ism band.
