1307032 - QuickMount Micro GPS Patch Antennas

Datasheet Summary

Features

  • of our passive antenna with a low noiseamplifier and filter. The design provides for DC transient protection on the input and output sides of the LNA circuit, eliminating the possibility of surge damage. QuickMount’s compact size fits any vehicular or portable receiver, and the LNA’s low noise figure actually improves receiver performance. Strong satellite lock is achieved by the low signalto-noise ratio and through rejection of out-of-band interference. Temporary installation using the suction.

📥 Download Datasheet

Datasheet preview – 1307032

Datasheet Details

Part number 1307032
Manufacturer Tyco Electronics
File Size 119.83 KB
Description QuickMount Micro GPS Patch Antennas
Datasheet download datasheet 1307032 Datasheet
Additional preview pages of the 1307032 datasheet.

📁 Similar Datasheet

  • 1300 - Crystal Clock Oscillators (Nihon Dempa Kogyo)
  • 1300-102-4xx - 2.54mm IDC Connector (Methode Electronics)
  • 13001 - NPN Epitaxial Silicon Transistor (Elite)
  • 13001-2 - NPN power transistor (Jingdao)
  • 13001-A - NPN power transistor (Jingdao)
  • 13001S - Low-frequency amplification environment rated bipolar transistors (ETC)
  • 13001S8D - NPN Transistor (JTD)
  • 13002AG - NPN SILICON TRANSISTOR (Unisonic Technologies)
  • 13002AH - NPN SILICON TRANSISTOR (Unisonic Technologies)
  • 13003 - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR (STMicroelectronics)
Other Datasheets by Tyco Electronics
  • 1307031 - 2.4 GHz Patch Antenna for ISM Band
  • 1307033 - OnBoard Micro GPS Patch Antennas
  • 1307034 - Micro GPS Patch Antenna Engines
  • 1307035 - Commercial Airborne GPS Antennas
  • 1307036 - The Powerpuck GPS Antenna
  • 1307023 - Picocell Antennas
  • 1307028 - Dipole Antenna for ISM Band

Full PDF Text Transcription

Click to expand full text

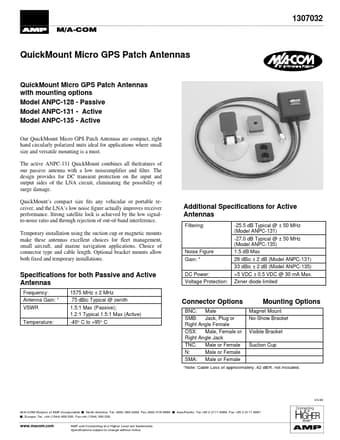

QuickMount Micro GPS Patch Antennas 1307032 1307032 QuickMount Micro GPS Patch Antennas QuickMount Micro GPS Patch Antennas with mounting options Model ANPC-128 - Passive Model ANPC-131 - Active Model ANPC-135 - Active Our QuickMount Micro GPS Patch Antennas are compact, right hand circularly polarized units ideal for applications where small size and versatile mounting is a must. The active ANPC-131 QuickMount combines all thefeatures of our passive antenna with a low noiseamplifier and filter. The design provides for DC transient protection on the input and output sides of the LNA circuit, eliminating the possibility of surge damage. QuickMount’s compact size fits any vehicular or portable receiver, and the LNA’s low noise figure actually improves receiver performance.
