AM52-0001TR

1.2 W High Efficiency Power Amplifier 800 - 960 MHz

AM52-0001TR Features

* SOIC-8 Thermally Efficient Plastic Package +30.8 dBm Typical Power Out Greater than 50% Typical Power Added Efficiency 21 dB typical Power Gain Flexible External Output Matching AM52-0001 V1.00 SOIC-8P .2284/.2440 (5.80/6.20) .010(.25)M B M .1497/.

AM52-0001TR General Description

M/A-COM’s AM52-0001 is a GaAs power amplifier in a thermally efficient low cost SOIC-8 plastic package. The AM52-0001 is designed for high efficiency 1.2 W output power and 21 dB of associated gain in the 800-960 MHz frequency band. The AM52-0001 is unconditionally stable in both small and large sig.

AM52-0001TR Datasheet (79.62 KB)

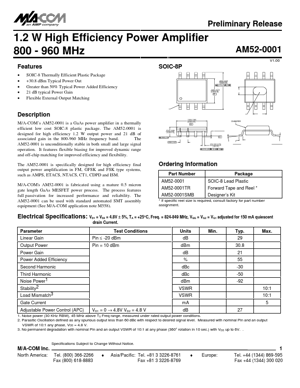

Preview of AM52-0001TR PDF

Datasheet Details

Part number:

AM52-0001TR

Manufacturer:

Tyco Electronics

File Size:

79.62 KB

Description:

1.2 w high efficiency power amplifier 800 - 960 mhz.
