AM52-0024TR Datasheet, Amplifier, Tyco Electronics

AM52-0024TR Features

• Amplifier
• Ideal for 802.11b ISM Applications Single Positive Supply Output Power 27.5 dBm 57% Typical Power Added Efficiency Downset MSOP-8 Packa

PDF File Details

Part number:

AM52-0024TR

Manufacturer:

Tyco Electronics

File Size:

352.33kb

Download:

📄 Datasheet

Description:

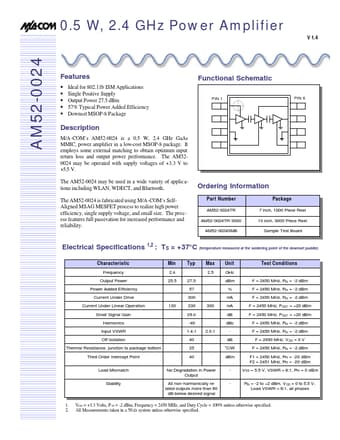

0.5 w/ 2.4 ghz power amplifier. M/A-COM’s AM52-0024 is a 0.5 W, 2.4 GHz GaAs MMIC, power amplifier in a low-cost MSOP-8 package. It employs some external matching to

AM52-0024TR Application

• Applications Single Positive Supply Output Power 27.5 dBm 57% Typical Power Added Efficiency Downset MSOP-8 Package Functional Schematic PIN 1 PIN
