BLF820, BLF082 Datasheet - Tyco Electronics

BLF820 (BLF082 / BLF820) surface Mountable RFI Filters

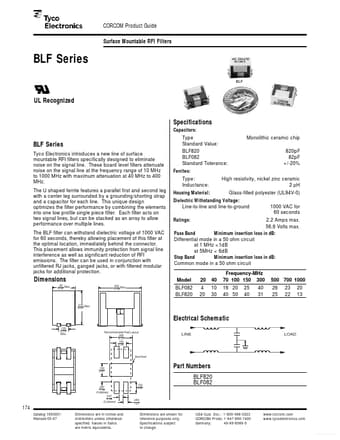

CORCOM Product Guide Surface Mountable RFI Filters BLF Series BLF UL Recognized Specifications Capacitors: Type Standard Value: BLF820 BLF082 Standard Tolerance: Ferrites: Type: Inductance: Housing Material: High resistivity, nickel zinc ceramic 2 µH Glass-filled polyester (UL94V-0) 1000 VAC for 60 seconds Monolithic ceramic chip 820pF 82pF +/-20% BLF Series Tyco Electronics introduces a new line of surface mountable RFI filters specifically designed to eliminate noise on the signal line. The.

BLF820 Features

* a parallel first and second leg with a center leg surrounded by a grounding/shorting strap and a capacitor for each line. This unique design optimizes the filter performance by combining the elements into one low profile single piece filter. Each filter acts on two signal lines, but can be stacked a

BLF082_TycoElectronics.pdf

This datasheet PDF includes multiple part numbers: BLF820, BLF082. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BLF820, BLF082

Manufacturer:

Tyco Electronics

File Size:

52.21 KB

Description:

(blf082 / blf820) surface mountable rfi filters.

Note:

This datasheet PDF includes multiple part numbers: BLF820, BLF082.
Please refer to the document for exact specifications by model.
