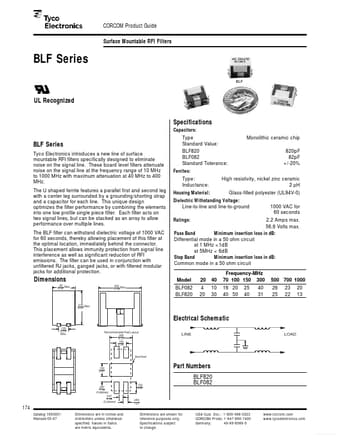

BLF082 - surface Mountable RFI Filters

Tyco Electronics

Datasheet Details

Part number	BLF082
Manufacturer	Tyco Electronics
File Size	52.21 KB
Description	surface Mountable RFI Filters
Datasheet	BLF082_TycoElectronics.pdf

a parallel first and second leg with a center leg surrounded by a grounding/shorting strap and a capacitor for each line. This unique design optimizes the filter performance by combining the elements into one low profile single piece filter. Each filter acts on two signal lines, but can be stacked as an array to allow performance over multiple lines. The BLF filter can withstand dielectric voltage of 1000 VAC for 60 seconds, thereby allowing placement of this filter at the optimal location, imme.
