BLF0910H9LS600

Power LDMOS transistor

BLF0910H9LS600 Features

* High efficiency

* Easy power control

* Excellent ruggedness

* Integrated ESD protection

* Designed for broadband operation (900 MHz to 930 MHz)

* Internally input matched

* For RoHS compliance see the product details on the Ampleon website 1.3 Applications

* Indust

BLF0910H9LS600 General Description

A 600 W LDMOS power transistor for industrial applications at frequency of 915 MHz. The BLF0910H9LS600 is designed for high-power CW applications and is assembled in a high performance ceramic package. Table 1. Typical performance RF performance at VDS = 50 V; IDq = 90 mA in a class-AB application.

BLF0910H9LS600 Datasheet (1.09 MB)

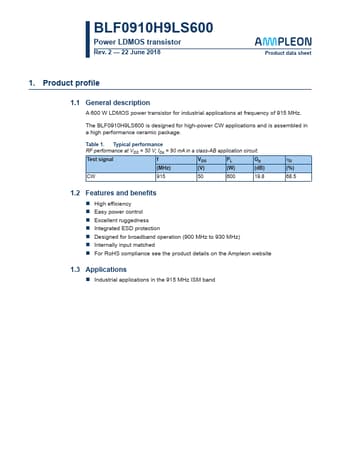

Preview of BLF0910H9LS600 PDF

Datasheet Details

Part number:

BLF0910H9LS600

Manufacturer:

Ampleon

File Size:

1.09 MB

Description:

Power ldmos transistor.
