BLF10M6160, Power LDMOS transistor

BLF10M6160; BLF10M6LS160 Power LDMOS transistor Rev.2 * 1 September 2015 Product data sheet 1.Product profile 1.1 General .
160 W LDMOS power transistor for industrial applications at frequencies from 700 MHz to 1000 MHz.

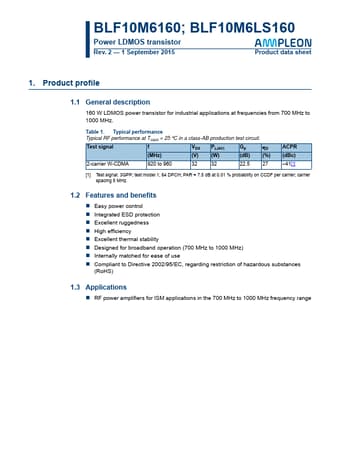

datasheet Preview Page 1 from Datasheet4u.com

BLF10M6160-Ampleon.pdf

BLF10M6160 Datasheet Preview — Preview of BLF10M6160 PDF

Datasheet Details

Part number:

BLF10M6160

Manufacturer:

Ampleon

File Size:

348.79 KB

Description:

Power LDMOS transistor

Features

* Easy power control
* Integrated ESD protection
* Excellent ruggedness
* High efficiency
* Excellent thermal stability
* Designed for broadband operation (700 MHz to 1000 MHz)
* Internally matched for ease of use
* Compliant to Directive 2002/95/EC, regarding restric

Applications

* at frequencies from 700 MHz to 1000 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a class-AB production test circuit. Test signal f VDS PL(AV) Gp D (MHz) (V) (W) (dB) (%) 2-carrier W-CDMA 920 to 960 32 32 22.5 27 ACPR (dBc) 41[1] [1] Test signal: 3GP
