BLF10M6LS135, BLF10M6135 Datasheet - Ampleon

BLF10M6LS135 Power LDMOS transistor

135 W LDMOS power transistor for industrial applications at frequencies from 700 MHz to 1000 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a class-AB production test circuit. Test signal f VDS PL(AV) Gp D (MHz) (V) (W) (dB) (%) 2-carrier W-CDMA 869 to 894.

BLF10M6LS135 Features

* Easy power control

* Integrated ESD protection

* Enhanced ruggedness

* High efficiency

* Excellent thermal stability

* Designed for broadband operation (700 MHz to 1000 MHz)

* Internally matched for ease of use

* Compliant to Directive 2002/95/EC, regarding restrict

BLF10M6135-Ampleon.pdf

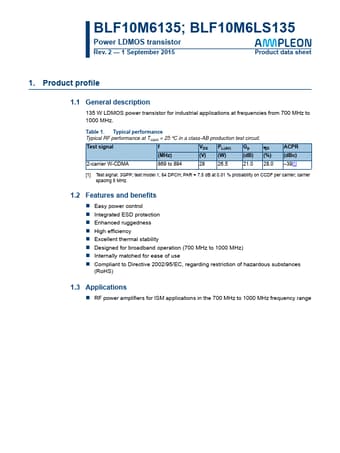

BLF10M6LS135 Datasheet Preview — This datasheet PDF includes multiple part numbers: BLF10M6LS135, BLF10M6135. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BLF10M6LS135, BLF10M6135

Manufacturer:

Ampleon

File Size:

350.77 KB

Description:

Power ldmos transistor.

Note:

This datasheet PDF includes multiple part numbers: BLF10M6LS135, BLF10M6135.
Please refer to the document for exact specifications by model.
