BLF10M6200, Power LDMOS transistor

BLF10M6200; BLF10M6LS200 Power LDMOS transistor Rev.2 * 1 September 2015 Product data sheet 1.Product profile 1.1 General .
200 W LDMOS power transistor for ISM applications at frequencies from 700 MHz to 1000 MHz.

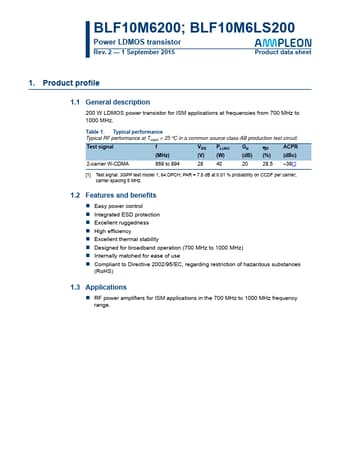

datasheet Preview Page 1 from Datasheet4u.com

BLF10M6200-Ampleon.pdf

BLF10M6200 Datasheet Preview — Preview of BLF10M6200 PDF

Datasheet Details

Part number:

BLF10M6200

Manufacturer:

Ampleon

File Size:

362.87 KB

Description:

Power LDMOS transistor

Features

* Easy power control
* Integrated ESD protection
* Excellent ruggedness
* High efficiency
* Excellent thermal stability
* Designed for broadband operation (700 MHz to 1000 MHz)
* Internally matched for ease of use
* Compliant to Directive 2002/95/EC, regarding restric

Applications

* at frequencies from 700 MHz to 1000 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f VDS PL(AV) Gp D ACPR (MHz) (V) (W) (dB) (%) (dBc) 2-carrier W-CDMA 869 to 894 28 40 20 28.5 39[1] [1] Tes
