BLF0810-180

Base station LDMOS transistors

BLF0810-180 Features

* Typical CDMA IS95 performance at standard settings with a supply voltage of 27 V and IDQ of 1130 mA. Adjacent channel bandwidth is 30 kHz, adjacent channel at ± 750 kHz:

* Output power = 30 W

* Gain = 16 dB

* Efficiency = 27%

* ACPR =

* 46 dBc at 750

BLF0810-180 General Description

BLF0810-180; BLF0810S-180 APPLICATIONS

* Common source class-AB operation applications in the 860 to 960 MHz frequency range

* CDMA and multicarrier applications. DESCRIPTION 180 W LDMOS power transistor for base station applications at frequencies from 800 to 1000 MHz. PINNING - S.

BLF0810-180 Datasheet (161.39 KB)

Preview of BLF0810-180 PDF

Datasheet Details

Part number:

BLF0810-180

Manufacturer:

NXP ↗

File Size:

161.39 KB

Description:

Base station ldmos transistors.

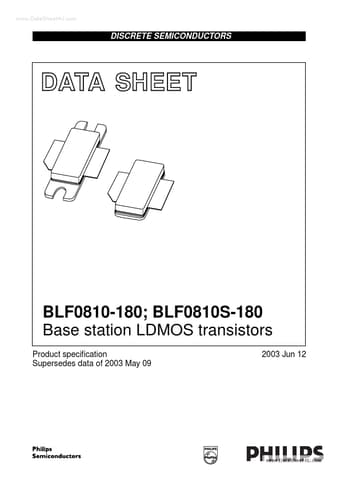

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET M3D379 M3D461 BLF0810-180; BLF0810S-180 Base station LDMOS transistors Product specificatio.
