BLF0910H6LS500

Power LDMOS transistor

BLF0910H6LS500 Features

* High efficiency

* Easy power control

* Excellent ruggedness

* Integrated ESD protection

* Designed for broadband operation (900 MHz to 930 MHz)

* Internally input matched

* Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) 1.3 Appl

BLF0910H6LS500 General Description

A 500 W LDMOS power transistor for industrial applications at frequency of 915 MHz. The BLF0910H6L500 and BLF0910H6LS500 are designed for high-power CW applications and are assembled in high performance ceramic packages. Table 1. Typical performance RF performance at VDS = 50 V; IDq = 90 mA in a cl.

BLF0910H6LS500 Datasheet (1.37 MB)

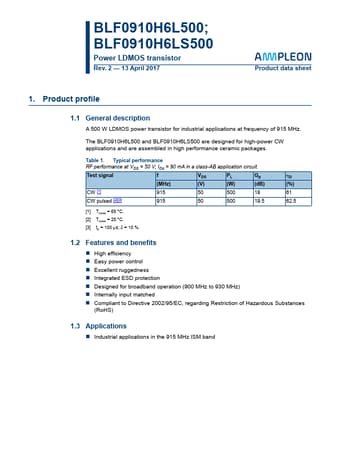

Preview of BLF0910H6LS500 PDF

Datasheet Details

Part number:

BLF0910H6LS500

Manufacturer:

Ampleon

File Size:

1.37 MB

Description:

Power ldmos transistor.
