LC010F

Power Modules

LC010F Features

* s Low profile: 10.2 mm x 25.4 mm x 50.8 mm (0.4 in. x 1.0 in. x 2.0 in.) with standoffs (9.6 mm (0.38 in.) with standoffs recessed) Wide input voltage range: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Output current limiting, unlimited duration Output overvoltage clamp Undervoltage lockout Input-to-outpu

LC010F General Description

The L Single- and Dual-Output-Series Power Modules are low-profile, dc-dc converters that operate over an input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide one or two precisely regulated outputs. The outputs are isolated from the input, allowing versatile polarity configuration.

LC010F Datasheet (561.38 KB)

Preview of LC010F PDF

Datasheet Details

Part number:

LC010F

Manufacturer:

Tyco Electronics

File Size:

561.38 KB

Description:

Power modules.

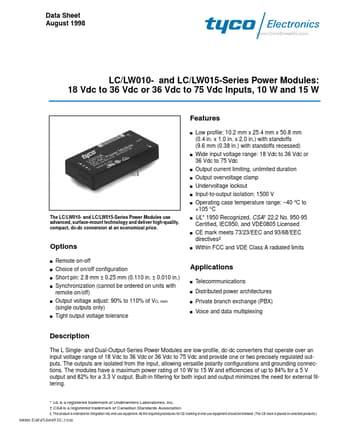

Data Sheet August 1998 www.DataSheet4U.com LC/LW010- and LC/LW015-Series Power Modules: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W Fe.
