LC015 Datasheet - Tyco Electronics

LC015 Power Modules

The L Single- and Dual-Output-Series Power Modules are low-profile, dc-dc converters that operate over an input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide one or two precisely regulated outputs. The outputs are isolated from the input, allowing versatile polarity configuration.

LC015 Features

* s Low profile: 10.2 mm x 25.4 mm x 50.8 mm (0.4 in. x 1.0 in. x 2.0 in.) with standoffs (9.6 mm (0.38 in.) with standoffs recessed) Wide input voltage range: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Output current limiting, unlimited duration Output overvoltage clamp Undervoltage lockout Input-to-outpu

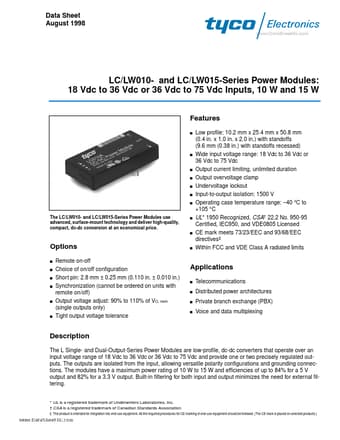

LC015 Datasheet (561.38 KB)
