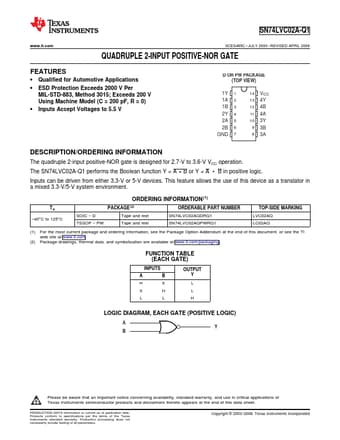

LC02AQ

QUADRUPLE 2-INPUT POSITIVE-NOR GATE

Texas Instruments

* 1

* Qualified for Automotive Applications

* ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)

* Inputs Accept Voltages to 5.5 V D OR PW PACKAGE (TOP VIEW) 1Y 1 1A 2 1B 3 2Y 4 2A 5 2B 6 GND 7 14 VCC 13 4Y 12 4B

LC02AQ

816.79 KB

Quadruple 2-input positive-nor gate.
