LC02A

QUADRUPLE 2-INPUT POSITIVE-NOR GATE

LC02A Features

* Operate From 1.65 V to 3.6 V

* Specified From

* 40°C to 85°C,

* 40°C to 125°C, and

* 55°C to 125°C

* Latch-Up Performance Exceeds 250 mA Per JESD 17

* ESD Protection Exceeds JESD 22

* Inputs Accept Voltages to 5.5 V

* 2000-V

LC02A General Description

ORDERING INFORMATION The SN54LVC02A quadruple 2-input positive-NOR gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC02A quadruple 2-input positive-NOR gate is designed for 1.65-V to 3.6-V VCC operation. The 'LVC02A devices perform the Boolean function Y = A + B or Y = A ⋅ B in posit.

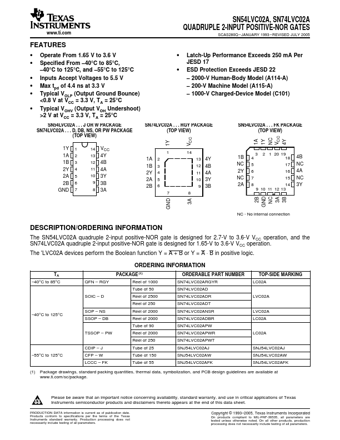

LC02A Datasheet (1.33 MB)

Preview of LC02A PDF

Datasheet Details

Part number:

LC02A

Manufacturer:

Texas Instruments ↗

File Size:

1.33 MB

Description:

Quadruple 2-input positive-nor gate.
