LC015C

Power Modules

LC015C Features

* s Low profile: 10.2 mm x 25.4 mm x 50.8 mm (0.4 in. x 1.0 in. x 2.0 in.) with standoffs (9.6 mm (0.38 in.) with standoffs recessed) Wide input voltage range: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Output current limiting, unlimited duration Output overvoltage clamp Undervoltage lockout Input-to-outpu

LC015C General Description

The L Single- and Dual-Output-Series Power Modules are low-profile, dc-dc converters that operate over an input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide one or two precisely regulated outputs. The outputs are isolated from the input, allowing versatile polarity configuration.

LC015C Datasheet (561.38 KB)

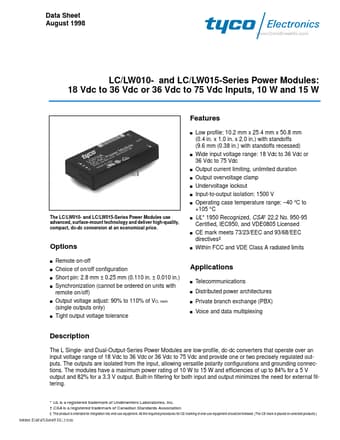

Preview of LC015C PDF

Datasheet Details

Part number:

LC015C

Manufacturer:

Tyco Electronics

File Size:

561.38 KB

Description:

Power modules.
Data Sheet August 1998 www.DataSheet4U.com LC/LW010- and LC/LW015-Series Power Modules: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 10 W and 15 W Fe.
