MA4E2037 - (MA4E2037 - MA4E2040) GaAs Beam Lead Schottky Barrier Diodes

Product Overview

Tyco Electronics

📥 Download Datasheet

MA4E2037 (MA4E2037 - MA4E2040) GaAs Beam Lead Schottky Barrier Diodes by Tyco Electronics - Datasheet Preview — Datasheet preview – MA4E2037

Datasheet Details

Part number	MA4E2037
Manufacturer	Tyco Electronics
File Size	68.29 KB
Description	(MA4E2037 - MA4E2040) GaAs Beam Lead Schottky Barrier Diodes
Datasheet	MA4E2037 Datasheet

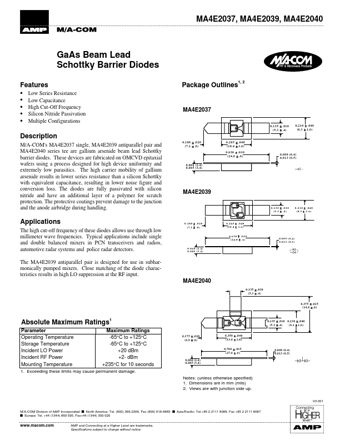

Additional preview pages of the MA4E2037 datasheet.

Product details

Description

M/A-COM's MA4E2037 single, MA4E2039 antiparallel pair and MA4E2040 series tee are gallium arsenide beam lead Schottky barrier diodes.

Features

Low Series Resistance Low Capacitance High Cut-Off Frequency Silicon Nitride Passivation Multiple Configurations Package Outlines 1, 2 MA4E2037 0.13 5 ± .0 10 (5.3 ± .4 ) 0.21 0 ± .0 40 (8.3 ± 1.6).
