MAAMSS0041 - Broadband CATV Amplifier

Description

M/A-COM’s MAAMSS0041 CATV amplifier is a GaAs MMIC which exhibits low distortion in a lead-free surface mount plastic package.

The MAAMSS0041 employs a monolithic single stage design featuring a convenient 75 ohm input/output impedance that minimizes the number of external components required.

Features

  • 75 Ohm Input / Output Match CTB: -80 dBc Noise Figure: 2.7 dB Gain: 14.8 dB Lead Free SOT-89 Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound RoHS Compliant and 260°C Re-flow Compatible Lead Free Version of MAAMSS0031 MAAMSS0041 V2 Functional Schematic.

📥 Download Datasheet

Datasheet preview – MAAMSS0041

Datasheet Details

Part number MAAMSS0041
Manufacturer Tyco Electronics
File Size 185.38 KB
Description Broadband CATV Amplifier
Datasheet download datasheet MAAMSS0041 Datasheet
Additional preview pages of the MAAMSS0041 datasheet.

📁 Similar Datasheet

  • MAAMSS0044 - Push Pull CATV Amplifier (MA-COM)
  • MAAMSS0006 - High Dynamic Range GaAs HBT Amplifier / 50 - 450 MHz (Tyco)
  • MAAMSS0007 - High Dynamic Range GaAs Amplifier / 800 - 2500 MHz (Tyco)
  • MAAMSS0017 - Broadband IF Driver Amplifier 50 - 450 MHz (Tyco)
  • MAAMSS0060 - Broadband CATV Amplifier (MA-COM)
  • MAAM-007239 - Broadband CATV Single Ended 3-Way Active Splitter (MA-COM)
  • MAAM-007805 - Broadband CATV Single Ended 2-Way Active Splitter (MACOM)
  • MAAM-007807 - Broadband CATV Amplifier (MACOM)
  • MAAM-007866-0P1R00 - Broadband Driver Amplifier (MACOM)
  • MAAM-008200 - Cascadable Amplifier (MA-COM)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

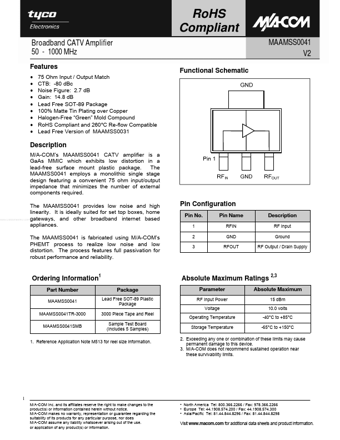

RoHS Compliant Broadband CATV Amplifier 50 - 1000 MHz Features • • • • • • • • • 75 Ohm Input / Output Match CTB: -80 dBc Noise Figure: 2.7 dB Gain: 14.8 dB Lead Free SOT-89 Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound RoHS Compliant and 260°C Re-flow Compatible Lead Free Version of MAAMSS0031 MAAMSS0041 V2 Functional Schematic Description M/A-COM’s MAAMSS0041 CATV amplifier is a GaAs MMIC which exhibits low distortion in a lead-free surface mount plastic package. The MAAMSS0041 employs a monolithic single stage design featuring a convenient 75 ohm input/output impedance that minimizes the number of external components required. The MAAMSS0041 provides low noise and high linearity.
