MAAMSS0045 - High Dynamic Range Low Noise Amplifier

Description

M/A-COM’s MAAMSS0045 is a high dynamic range, GaAs MMIC, low noise amplifier in a lead-free SOIC 8-lead, surface mount, plastic package.

It employs external input matching to obtain optimum noise figure performance and operating frequency flexibility.

Features

  • Low Noise Figure: 1.4 dB.
  • High Input IP3: +18 dBm at 8 V, 45 mA bias +8 dBm at 3 V, 20 mA bias.
  • High Gain: 14 dB.
  • Single Supply: +3 to +8 VDC.
  • Adjustable current: 20 to 60 mA with external resistor.
  • Lead-Free SOIC-8 Package.
  • 100% Matte Tin Plating over Copper.
  • Halogen-Free “Green” Mold Compound.
  • 260°C Reflow Compatible.
  • RoHS.
  • Compliant Version of AM50-0004 MAAMSS0045 V1 Functional Block Diagram GND.

📥 Download Datasheet

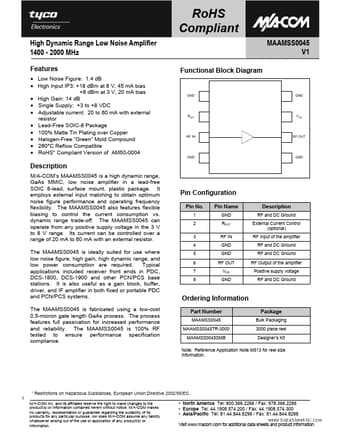

Datasheet preview – MAAMSS0045
