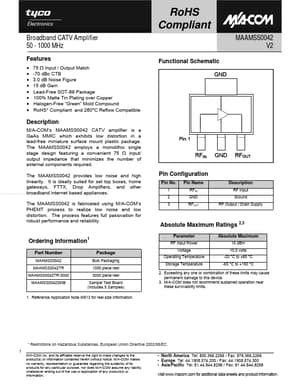

MAAMSS0042 Datasheet, Amplifier, Tyco Electronics

MAAMSS0042 Features

• Amplifier
• 75 Ω Input / Output Match -70 dBc CTB 3.0 dB Noise Figure 15 dB Gain Lead-Free SOT-89 Package 100% Matte

PDF File Details

Part number:

MAAMSS0042

Manufacturer:

Tyco Electronics

File Size:

183.46kb

Download:

📄 Datasheet

Description:

Broadband catv amplifier. M/A-COM’s MAAMSS0042 CATV amplifier is a GaAs MMIC which exhibits low distortion in a lead-free miniature surface mount plastic packa
