MAAMSS0046 - Broadband IF Driver Amplifier

Name: MAAMSS0046
SKU: MAAMSS0046-580875

Tyco Electronics

📥 Download Datasheet

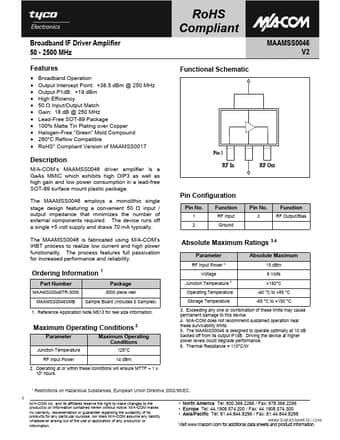

MAAMSS0046 Datasheet Preview — Preview of MAAMSS0046 PDF

Datasheet Details

Part number	MAAMSS0046
Manufacturer	Tyco Electronics
File Size	211.92 KB
Description	Broadband IF Driver Amplifier
Datasheet	MAAMSS0046_TycoElectronics.pdf

MAAMSS0046 Product details

Description

M/A-COM’s MAAMSS0046 driver amplifier is a GaAs MMIC which exhibits high OIP3 as well as high gain and low power consumption in a lead-free SOT-89 surface mount plastic package.

Features

Broadband Operation Output Intercept Point: +38.5 dBm @ 250 MHz Output P1dB: +19 dBm High Efficiency 50 Ω Input/Output Match Gain: 18 dB @ 250 MHz Lead-Free SOT-89 Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound 260°C Reflow Compatible RoHS.
Compliant Version of MAAMSS0017 Pin 1 MAAMSS0046 V2 Functional Schematic.
