MASWSS0093 Datasheet - Tyco Electronics

GaAs Broadband SPDT Switch

MASWSS0093 Features

* UNII, Hiperlan, and 802.11a+b/g Applications Broadband Performance: DC-6 GHz Low Insertion Loss: 0.9 dB at 6 GHz High Isolation: 28 dB Typical Fast Switching Speed: 0.5 µm GaAs PHEMT High Power: 36 dB

MASWSS0093 General Description

M/A-COM’s MASWSS0093 is a broadband GaAs PHEMT MMIC SPDT switch in a low cost, lead-free 3 mm 12-lead PQFN package. The MASWSS0093 is ideally suited for applications where very small size and low cost are required. The MASWSS0093, with its small size and low height, is ideal for 802.11a and 802.11b/.

MASWSS0093 Datasheet (210.48 KB)

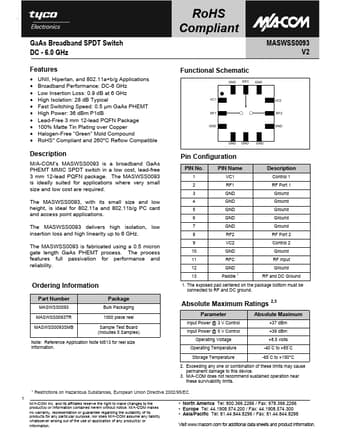

MASWSS0093 Datasheet Preview — Preview of MASWSS0093 PDF

Datasheet Details

Part number:

MASWSS0093

Manufacturer:

Tyco Electronics

File Size:

210.48 KB

Description:

Gaas broadband spdt switch.
