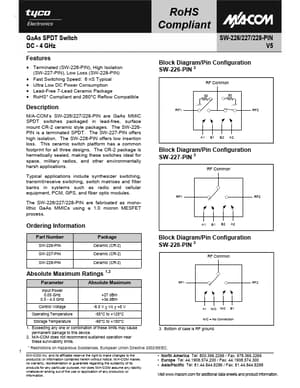

datasheet Preview Page 1 from Datasheet4u.com

SW-228-PIN, SW-226-PIN (SW-226-PIN - SW-228-PIN) GaAs SPDT Switch

www.DataSheet4U.com RoHS Compliant SW-226/227/228-PIN V5 Block Diagram/Pin Configuration SW-226-PIN 3 RF Common 50 50 GaAs SPDT Switch DC - 4 GHz Fe.
M/A-COM’s SW-226/227/228-PIN are GaAs MMIC SPDT switches packaged in lead-free, surface mount CR-2 ceramic style packages.

SW-226-PIN_TycoElectronics.pdf

SW-228-PIN Datasheet Preview — This datasheet PDF includes multiple part numbers: SW-228-PIN, SW-226-PIN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SW-228-PIN, SW-226-PIN

Manufacturer:

Tyco Electronics

File Size:

167.36 KB

Description:

(SW-226-PIN - SW-228-PIN) GaAs SPDT Switch

Note:

This datasheet PDF includes multiple part numbers: SW-228-PIN, SW-226-PIN.
Please refer to the document for exact specifications by model.

Features

* Terminated (SW-226-PIN), High Isolation (SW-227-PIN), Low Loss (SW-228-PIN)
* Fast Switching Speed: 6 nS Typical
* Ultra Low DC Power Consumption
* Lead-Free 7-Lead Ceramic Package
* RoHS

Applications

* Typical applications include synthesizer switching, transmit/receive switching, switch matrices and filter banks in systems such as radio and cellular equipment, PCM, GPS, and fiber optic modules. RF1 RF2 A1 B1 B2 A2 Block Diagram/Pin Configuration SW-227-PIN 3 RF Common RF1 RF2 The SW-22
