SW-485 GaAs SPDT Switch

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com GaAs SPDT Switch 0.05 - 3.0 GHz Functional Schematic C=39pF SW-485 .
M/A-COM’s SW -485 is a GaAs PHEMT MMIC SPDT switch in a low cost SC-70 (SOT-363) surface mount plastic package.

📥 Download Datasheet

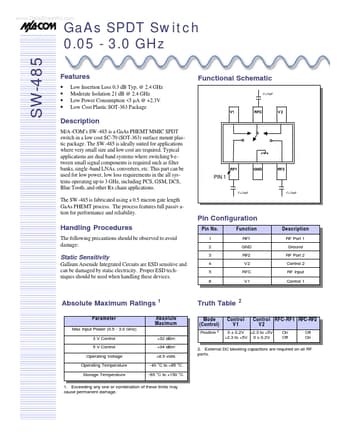

Preview of SW-485 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SW-485
Manufacturer
Tyco Electronics
File Size
128.58 KB
Datasheet
SW-485_TycoElectronics.pdf
Description
GaAs SPDT Switch

Features

* Low Insertion Loss 0.3 dB Typ. @ 2.4 GHz Moderate Isolation 21 dB @ 2.4 GHz Low Power Consumption

Applications

* where very small size and low cost are required. Typical applications are dual band systems where switching b etween small signal components is required such as filter banks, single-band LNAs, converters, etc. This part can be used for low power, low loss requirements in the all systems operating up
