SW-488 Datasheet - Tyco Electronics

2 V Dual-Mode WCDMA & Dual-Band GSM/DCS Switch

SW-488 Features

* GSM Power Handling with +2.0 V Control Voltage Low Power Consumption. Less than 1µA current in Receive mode. Integrated Decoder. Leadless 4 x 4mm FQFP -N, 20 Pin Package. Low Insertion Loss, 0.3 dB in GSM Transmit mode. Functional Schematic WCDMA A

SW-488 General Description

The M/A-COM SW-488 is a GaAs monolithic switch in a low cost, FQFP-N, surface mount plastic package. The SW-488 is ideally suited for applications where very low power consumption, high power handling, and low cost are required. The SW-488 includes an integrated decoder. The switch offers GSM power .

SW-488 Datasheet (83.37 KB)

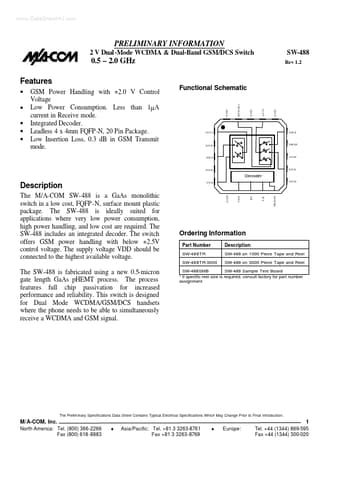

Preview of SW-488 PDF

Datasheet Details

Part number:

SW-488

Manufacturer:

Tyco Electronics

File Size:

83.37 KB

Description:

2 v dual-mode wcdma & dual-band gsm/dcs switch.
