SW-489 - GaAs SP3T 2.5V High Power Switch

Tyco Electronics

The SW-489 by Tyco Electronics is a GaAs SP3T 2.5V High Power Switch. Below is the official datasheet preview.

📥 Download Datasheet

SW-489 GaAs SP3T 2.5V High Power Switch by Tyco Electronics - Datasheet Preview — Official preview page of the **SW-489** GaAs SP3T 2.5V High Power Switch datasheet (Tyco Electronics).

Datasheet Details

Part number	SW-489
Manufacturer	Tyco Electronics
File Size	282.31 KB
Description	GaAs SP3T 2.5V High Power Switch
Datasheet	SW-489_TycoElectronics.pdf

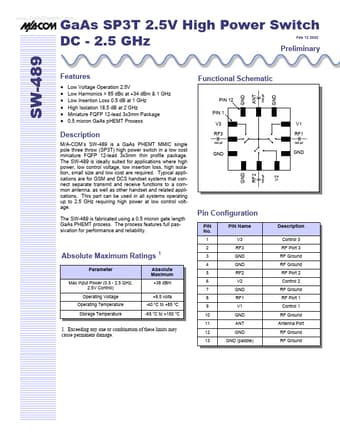

Additional preview pages of the SW-489 datasheet.

SW-489 Product details

Description

M/A-COM’s SW-489 is a GaAs PHEMT MMIC single pole three throw (SP3T) high power switch in a low cost miniature FQFP 12-lead 3x3mm thin profile package.

Features

Low Voltage Operation 2.5V Low Harmonics > 65 dBc at +34 dBm & 1 GHz Low Insertion Loss 0.5 dB at 1 GHz High Isolation 18.5 dB at 2 GHz Miniature FQFP 12-lead 3x3mm Package 0.5 micron GaAs pHEMT Process Functional Schematic GND ANT 100 pF PIN 12 PIN 1 V3 RF3 100 pF GND V1 RF1 100 pF.
