MACPES0004

E-Series 75 Ohm Coupler 5 - 870 MHZ

MACPES0004 Features

* Low Intermod Distortion Coupling 10db Typical Surface Mount Tape and Reel Packaging available SM-132 Package Description M/A-COM’s MACPES0004 is a high performance 75 Ohm Coupler, in a SM-132 low cost, surface mount package. The MACPES0004 is specifically de

MACPES0004 General Description

M/A-COM’s MACPES0004 is a high performance 75 Ohm Coupler, in a SM-132 low cost, surface mount package. The MACPES0004 is specifically designed for extremely low intermod distortion in CATV applications. The MACPES0004 required the use of a 6+/-5%uH shunt inductor and a series 1500+/-5% pF capacitor.

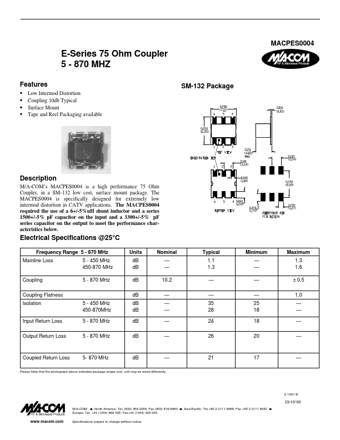

MACPES0004 Datasheet (62.07 KB)

Preview of MACPES0004 PDF

Datasheet Details

Part number:

MACPES0004

Manufacturer:

Tyco

File Size:

62.07 KB

Description:

E-series 75 ohm coupler 5 - 870 mhz.
