MACPES0018

E-Series 75 Ohm 16dB Coupler 5 - 1200 MHz

MACPES0018 Features

* Low Intermod Distortion Coupling 16dB Typical Surface mount Tape and Reel Packaging available Package Description M/A-COM’s MACPES0018 is a high performance 75 Ohm Coupler, in a SM-103 low cost, surface mount package. The MACPES0018 is specifically designed for extremely low intermod distortion in

MACPES0018 General Description

M/A-COM’s MACPES0018 is a high performance 75 Ohm Coupler, in a SM-103 low cost, surface mount package. The MACPES0018 is specifically designed for extremely low intermod distortion in CATV applications. Electrical Characteristics @ 25 °C Parameter Mainline Loss 5 - 40 MHz 40-1000MHz 1000-1200MHz 5.

MACPES0018 Datasheet (61.32 KB)

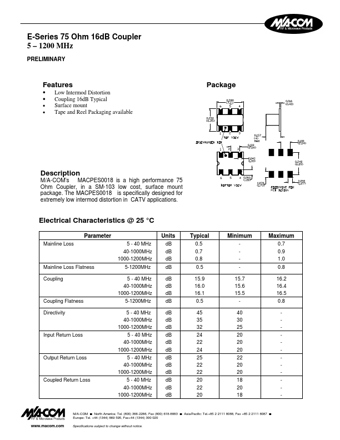

Preview of MACPES0018 PDF

Datasheet Details

Part number:

MACPES0018

Manufacturer:

Tyco

File Size:

61.32 KB

Description:

E-series 75 ohm 16db coupler 5 - 1200 mhz.
