QM09N50F Datasheet - UBIQ

N-Ch 500V Fast Switching MOSFETs

QM09N50F Features

* z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 500V RDSON 0.75Ω ID 9A Applications z High efficient switched mode power supplies z Electronic lamp ballast z LCD TV/ Monitor z Adapter TO220F Pin Configuration Absolu

QM09N50F General Description

The QM09N50F is the highest performance N-ch MOSFETs with specialized high voltage technology, which provide excellent RDSON and gate charge for most of the SPS, Charger ,Adapter and lighting applications . The QM09N50F meet the RoHS and Green Product requirement , 100% EAS guaranteed with full func.

QM09N50F Datasheet (313.57 KB)

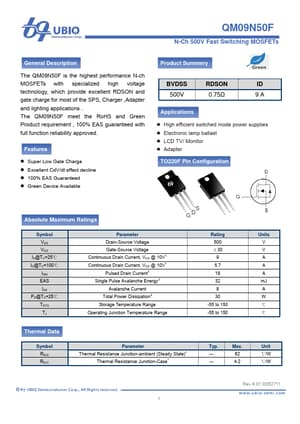

Preview of QM09N50F PDF

Datasheet Details

Part number:

QM09N50F

Manufacturer:

UBIQ

File Size:

313.57 KB

Description:

N-ch 500v fast switching mosfets.
