SI2319A SOT-23 Plastic-Encapsulate MOSFETS

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

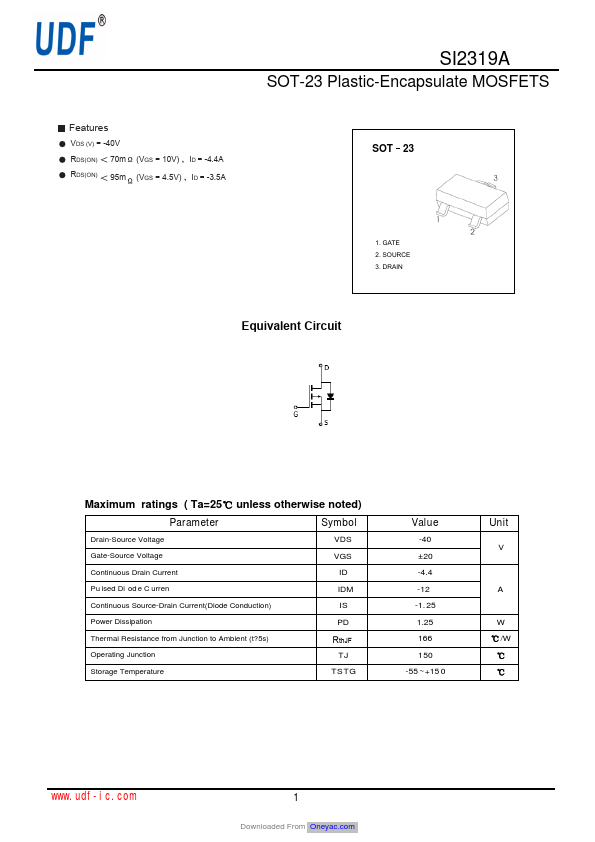

Preview of SI2319A PDF

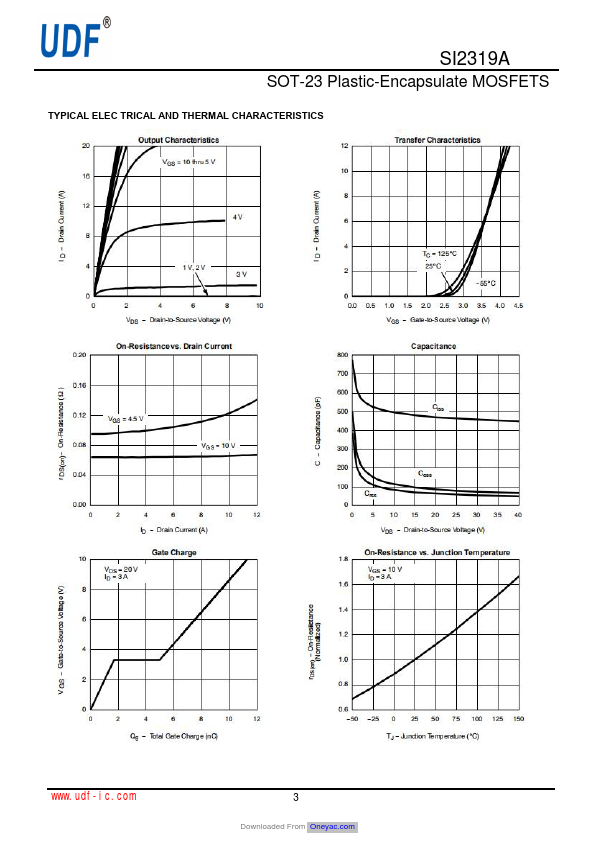

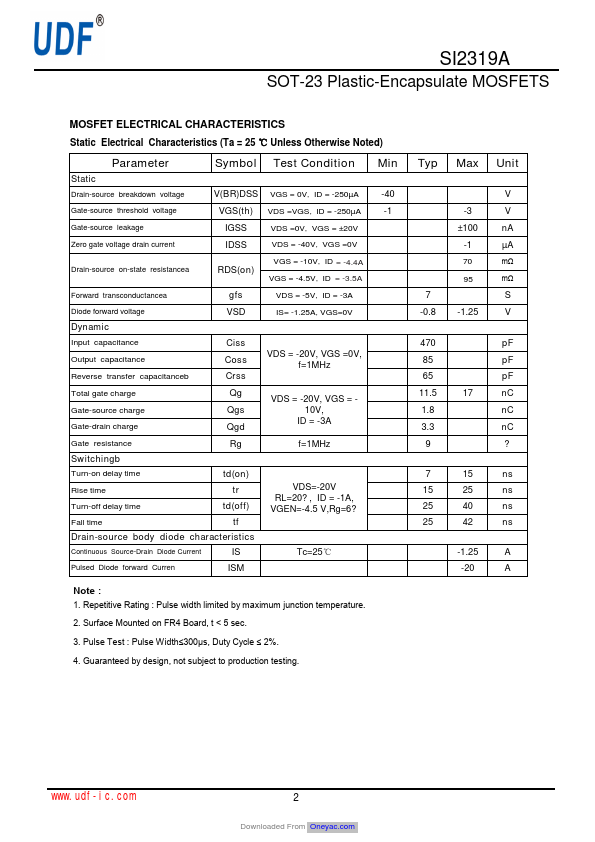

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SI2319A
Manufacturer
UDF
File Size
955.89 KB
Datasheet
SI2319A-UDF.pdf
Description
SOT-23 Plastic-Encapsulate MOSFETS

Features

* VDS (V) = -40V RDS(ON) 70m (VGS = 10V) ，ID = -4.4A RDS(ON) 95m (VGS = 4.5V) ，ID = -3.5A SI2319A SOT-23 Plastic-Encapsulate MOSFETS SOT
* 23 1. GATE 2. SOURCE 3. DRAIN Equivalent Circuit Maximum ratings ( Ta=25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Sour
