SI2312, 20V N-Channel MOSFET

20V N-Channel Enhancement Mode MOSFET VDS= 20V RDS(ON), Vgs@4.5V, Ids@5.0A < 31mΩ RDS(ON), Vgs@2.5V, Ids@4.5A < 37mΩ RDS(ON), Vgs@1.8V, Ids@3.9A < 85m.

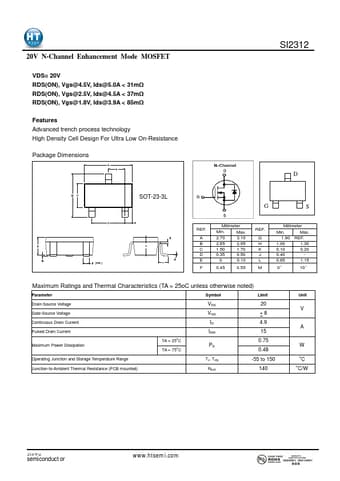

datasheet Preview Page 1 from Datasheet4u.com

SI2312-JinYu.pdf

SI2312 Datasheet Preview — Preview of SI2312 PDF

Datasheet Details

Part number:

SI2312

Manufacturer:

JinYu

File Size:

1.83 MB

Description:

20V N-Channel MOSFET

Features

* Advanced trench process technology High Density Cell Design For Ultra Low On-Resistance Package Dimensions SI2312 D SOT-23-3L GS REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.65 2.95 1.50 1.70 0.35 0.50 0 0.10 0.45 0.55 REF. G H K J L M Millimeter Min. Max. 1.90 1.00 0.10 0.40 0.85 REF
