HT7027, HT7020 three-port low voltage detector

Description

UMW HT70xx Ver 2.0 1..

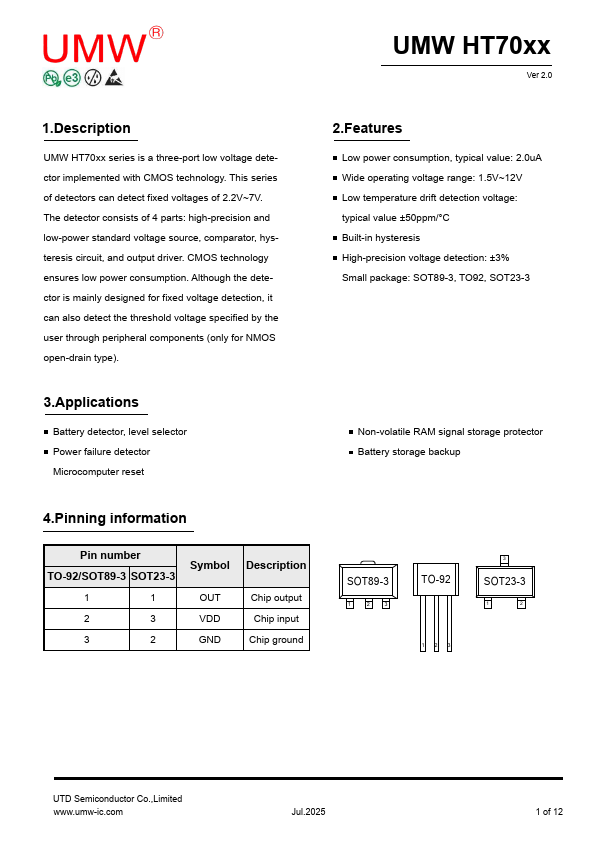

UMW HT70xx series is a three-port low voltage detector implemented with CMOS technology.

📥 Download Datasheet

HT7027 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7027, HT7020. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HT7027, HT7020
Manufacturer: UMW
File Size: 195.92 KB
Datasheet: HT7020-UMW.pdf
Description: three-port low voltage detector
Note: This datasheet PDF includes multiple part numbers: HT7027, HT7020.
Please refer to the document for exact specifications by model.

Features

* Low power consumption, typical value: 2.0uA Wide operating voltage range: 1.5V~12V Low temperature drift detection voltage: typical value ±50ppm/°C Built-in hysteresis High-precision voltage detection: ±3% Small package: SOT89-3, TO92, SOT23-3 Non-volatile RAM signal storage protector Battery storag
