UCC27519DBVR - 4A Single-Channel Non-Inverting Gate Driver

UCC27519DBVR Description

1..
The UMW UCC27519 device is a low voltage power MOSFET and IGBT in phase gate driver.

UCC27519DBVR Features

* Input output in phase / out of phase Compatible with 3.3V, 5V, 15V input logic -10 to 25V Single-Supply Range High capacitance load driving capability Operating Temperature Range of -40 to 125°C 4-A Peak Source and Sink-Drive Current UMW UCC27519DBVR 4A Single-Channel, Low-Side, Non-Inverting Gate

UCC27519DBVR Applications

* Switch-Mode Power Supplies General Gate Driver Driving MOSFETs and IGBTs Undervoltage Lockout
* Undervoltage Lockout turn-on threshold 4.5V
* Undervoltage Lockout turn-off threshold 4.2V Turn on/Turn off Delays:
* Ton/Toff =25ns/25ns UTD Semiconductor Co. ,Limited www. umw-ic.

📥 Download Datasheet

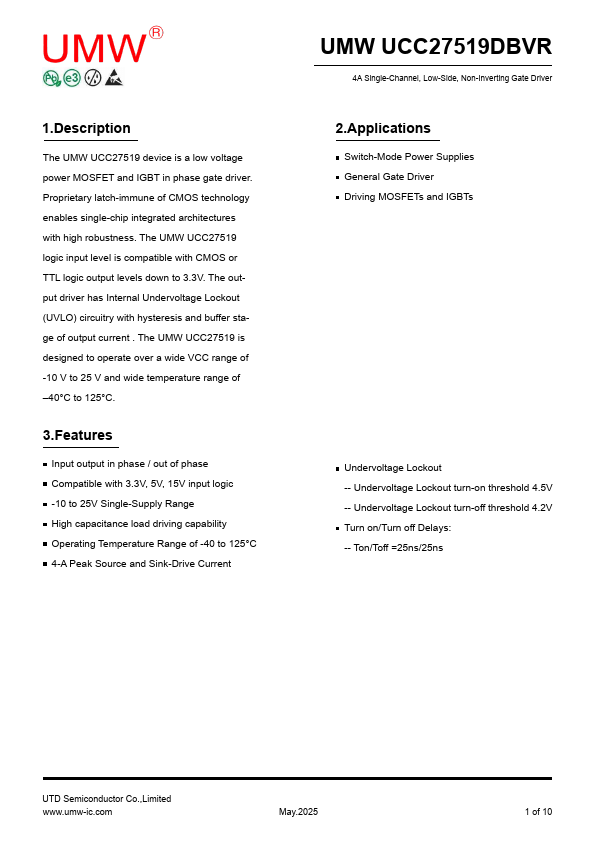

Preview of UCC27519DBVR PDF

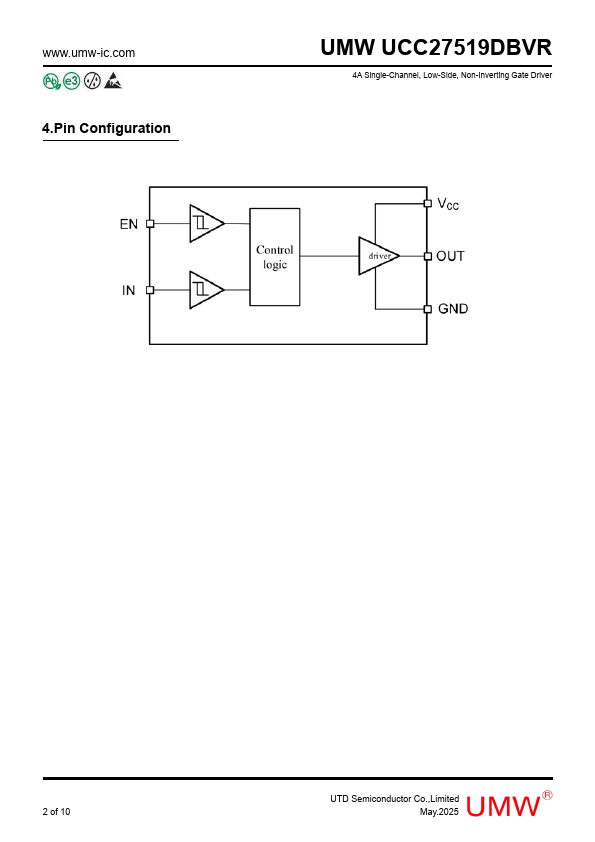

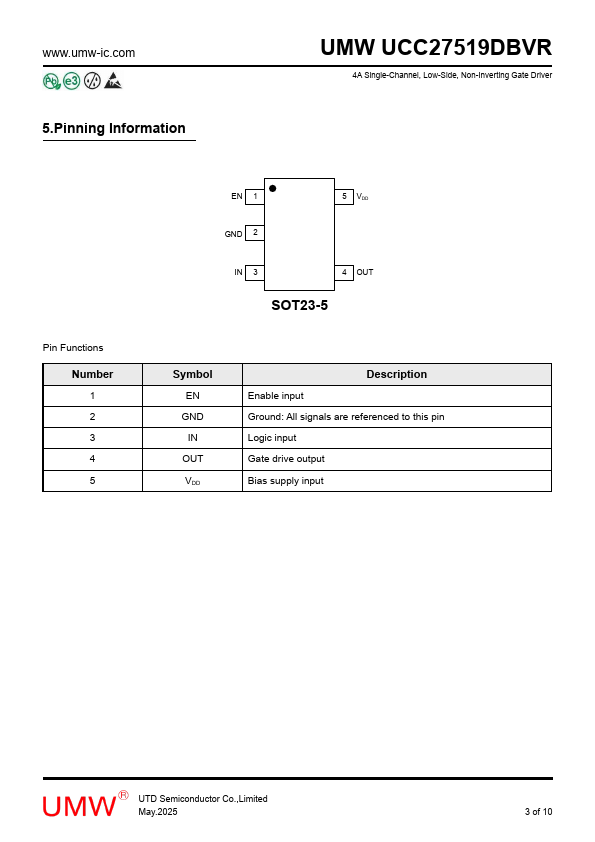

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UCC27519DBVR
Manufacturer
UMW
File Size
224.98 KB
Datasheet
UCC27519DBVR-UMW.pdf
Description
4A Single-Channel Non-Inverting Gate Driver
