UCC27516 Datasheet - Texas Instruments

Low-Side Gate Driver

UCC27516 Features

* 1 Low-Cost Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions

* 4-A Peak-Source and 4-A Peak-Sink Symmetrical Drive

* Fast Propagation Delays (13-ns Typical)

* Fast Rise and Fall Times (9-ns and 7-ns Typical)

* 4.5 to 18-V Sing

UCC27516 General Description

The UCC27516 and UCC27517 single-channel, highspeed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC27516 and UCC27517 can source and sink high peak-current pulses into capacitive loads offering ra.

UCC27516 Datasheet (1.59 MB)

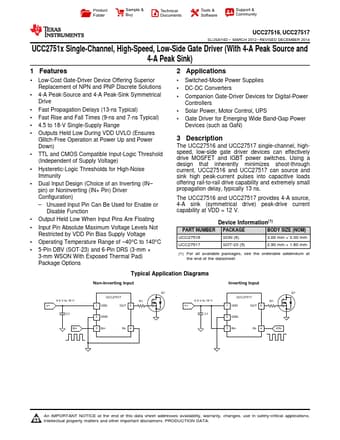

Preview of UCC27516 PDF

Datasheet Details

Part number:

UCC27516

Manufacturer:

Texas Instruments ↗

File Size:

1.59 MB

Description:

Low-side gate driver.
