UCC27511

Low-Side Gate Driver

UCC27511 Features

* Low-Cost Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions

* 4-A Peak Source and 8-A Peak Sink Asymmetrical Drive

* Strong Sink Current Offers Enhanced Immunity Against Miller Turnon

* Split Output Configuration (Allows Easy and Inde

UCC27511 General Description

The UCC27511 and UCC27512 single-channel, highspeed, low-side gate-driver device can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC27511 and UCC27512 are capable of sourcing and sinking high peak-current pulses into capacitive lo.

UCC27511 Datasheet (1.58 MB)

Preview of UCC27511 PDF

Datasheet Details

Part number:

UCC27511

Manufacturer:

Texas Instruments ↗

File Size:

1.58 MB

Description:

Low-side gate driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27511, UCC27512 SLUSAW9F

* FEBRUARY 2012

.

📁 Related Datasheet

UCC27511A - Single-Channel High-Speed Low-Side Gate Driver (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community UCC27511A SLUSD95 – MARCH 2018 UCC27511A Single-Channel High-Sp.

UCC27511A-Q1 - Single-Channel High-Speed Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27511A-Q1 SLVSCO2A – AUGUST 2014 – REVISED SEPTEMBER 2014.

UCC27512 - Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27511, UCC27512 SLUSAW9F – FEBRUARY 2012 – REVISED NOVEMB.

UCC27512-EP - LOW-SIDE GATE DRIVER (Texas Instruments)
.ti. UCC27512-EP SLUSBE3 – JUNE 2013 SINGLE CHANNEL HIGH-SPEED, LOW-SIDE GATE DRIVER (WITH 4-A PEAK SOURCE AND 8-A PEAK SINK) Check for Sample.

UCC27516 - Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27516, UCC27517 SLUSAY4D – MARCH 2012 – REVISED DECEMBER .

UCC27517 - Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27516, UCC27517 SLUSAY4D – MARCH 2012 – REVISED DECEMBER .

UCC27517A - Single-Channel High-Speed Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27517A SLUSBQ0C – AUGUST 2013 – REVISED AUGUST 2015 UCC27.

UCC27517A-Q1 - Single-Channel High-Speed Low-Side Gate Driver (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27517A-Q1 SLVSC88B – AUGUST 2013 – REVISED AUGUST 2015 UC.

TAGS

UCC27511 Low-Side Gate Driver Texas Instruments

Image Gallery

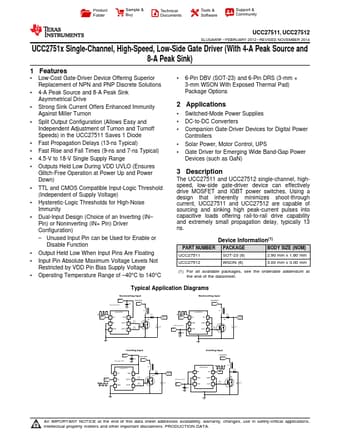

UCC27511 Datasheet Preview Page 2 UCC27511 Datasheet Preview Page 3
