P5102FMNV P-Channel MOSFET

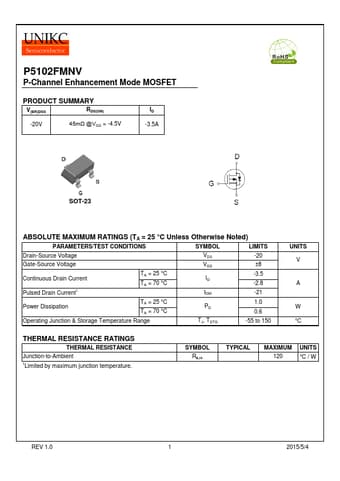

P5102FMNV P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -20V 45mΩ @VGS = -4.5V ID -3.5A SOT-23 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -20 Gate-Source Voltage VGS ±8 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -3.5 -2.8 -21 Power Dissipation TA = 25 °C TA = 70 °C PD 1.0 0.6 Operating Junction & Storage Temperature Range TJ, TSTG -55.

P5102FMNV Datasheet (506.50 KB)
