PD504BA Datasheet - UNIKC

PD504BA N-Channel MOSFET

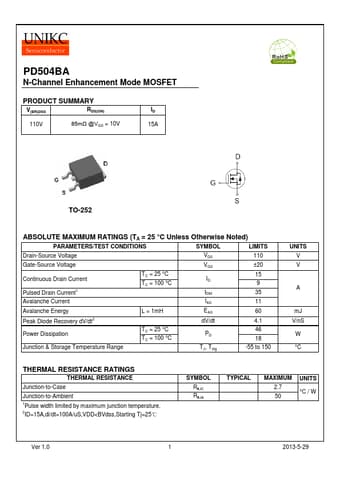

PD504BA N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 110V 85mΩ @VGS = 10V ID 15A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 110 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID IDM 15 9 35 Avalanche Current IAS 11 Avalanche Energy L = 1mH EAS 60 Peak Diode Recovery dV/dt2 dV/dt 4.1 Power Dissipation TC =.
